Re: A New Boat to Check Out
Incredible! awesome job.
imagine how much it would cost for production manufacturers to pay this much attention to detail.... |
Re: A New Boat to Check Out
I molded a pair of fiberglass tubes like that for my Mako21 a few months before Katrina, but I haven't touched the boat since then. I also molded a pair for my Mako26 about 8 months ago, and I plan on installing them in about 2 months.
I'm glad to see someone put the same kind of plan into action. However, I never thought of having any of the drain lines exit through those scuppers. Ingenious. http://www.classicmako.com/projects/...s/scupper1.jpg Basically, I wrap the mold in thin plastic. That way I don't have to spend time waxing the thing and the part comes off alot easier. It doesn't have to be perfect anyhow. I use 1.5oz mat for the flange and 6 oz cloth to wrap the actual tube. There are about 5 wraps of the 6 oz cloth. I used the 1.5oz mat to tie the flange onto the tube in the glassing process. http://www.classicmako.com/projects/.../scuppers1.jpg I have some cleaning up to do, but these are all set to go into the boat when that part of the project comes up. http://www.classicmako.com/projects/.../scuppers3.jpg http://www.classicmako.com/projects/.../scuppers4.jpg |
Re: A New Boat to Check Out
Those drain tubes turned out GREAT!! What kind of plastic did you use and how did you adhere it to the mold?
|
Re: A New Boat to Check Out
I used 2 mil plastic sheeting (visqueen). The mold is simple. Two pieces of 3/4" MDF screwed together with the edges rounded over with the router.
The angle between the transom and the deck was taken and I used my miter saw to cut that angle into the end of the tube section that mates up the the base (which makes the flange). I covered the base of the mold with a piece of plastic and then wrapped the tube section with the plastic just like you would wrap a birthday present (I just made sure I wrapped it tightly). Then I screwed the wrapped tube section to the covered base. I start by glassing the junction between the base and tube with little hunks of mat. I just tear hunks off of a sheet of 1.5 oz mat and place them on the spot and dab them to place with a brush of resin. I built it up pretty thick. Then you can see in the first pix that I cut a full piece of mat to fit around the tube and that makes the flange. Once I get the flange glassed and the mat working its way up the tube (about 1" up or so), I start wrapping it in layers of 6 oz cloth. 5 or 6 wraps and its about 1/8" thick. |
Re: A New Boat to Check Out
Did you mate the flange to the outside of the transom???
|
Re: A New Boat to Check Out
I haven't installed them yet, but the flange will mate to the outside of the transom. The cut out for the tube to traverse the transom will be bedded with thickened epoxy resin as well as the flange mating to the transom. Then the flange will be glassed over and faired flush. A fillet will be made on the inside skin of the transom around the tube and a layer or 2 of glass will be tabbed there.
|
Re: A New Boat to Check Out
The floor was made outside of the boat using a pattern, seen here leaning up to the left. The underside has been glassed.
http://i57.photobucket.com/albums/g2...ines/csc61.jpg The top side of the foam core won't be glassed until in place. Cutouts were made for fuel tank and battery box access, as well as for the control and wire chases. http://i57.photobucket.com/albums/g2...ines/csc67.jpg Floor bonded in place. http://i57.photobucket.com/albums/g2...ines/csc75.jpg I plan to access the battery boxes, macerator pump, and tranducer through a seat in front of the console (the hole through the floor of the lower battery box in the picture is for the transducer tank). Access to the fuel tank and the control/wire chases will be in the console itself. http://i57.photobucket.com/albums/g2...ines/csc76.jpg |
Re: A New Boat to Check Out
i have 1 word for that >>>> WOW....
I'M GREEN WITH ENVY WHERE IS THE GLASS WORK BEING DONE AND APROXIMATE COST ? JUST BALLPARK. |
Re: A New Boat to Check Out
Hello Bonefish - I am restoring a 74 23 Tsunami up the road from you in Charleston. What kind of foam are you using for those bulkheads and the new cap on th transom (green foam)??? Also, are you able to bond resin/glass directly to that foam?? Thanks - Robert
|
Re: A New Boat to Check Out
Looks good. I hope that your are able to through bolt the console with nuts and fender washers, if not then the screws will pull out of the floor due to the foam core not having any holding power. What a lot of the boat manufactures are doing is glassing in plywood or an aluminum plate in these areas.
|
Re: A New Boat to Check Out
Quote:
|
Re: A New Boat to Check Out
Most of the foam that has been used in the boat to this point is either Divincel or Klegicel.
Also, small plywood panels are being laminated into the foam cored floor where chair bases will be screwed in (I'll post a picture of this soon). We plan to glass the console in place. |
Re: A New Boat to Check Out
Where did you get the anchor pulpit? I am possibly going to put one on my sceptre.
|
Re: A New Boat to Check Out
Are you getting the foam someplace locally??
|
Re: A New Boat to Check Out
any more progress?
amazing work. |
Re: A New Boat to Check Out
Quote:
I'm going to sit back and watchhttp://www.floridasportsman.com/art/popcorn.gif |
Re: A New Boat to Check Out
Quote:
BTW Congrats to you Trayder :cool: strick |
Re: A New Boat to Check Out
Quote:
Quote:
|
Re: A New Boat to Check Out
Ok guys, here's where I am: Fairing, fairing, fairing. It's a lot of work, but doesn't make for very exciting pictures. We actually just put a coat of high build primer on the outside of the hull.
Console gets built and placed next. I'm too short to keep the old one. |
Re: A New Boat to Check Out
The foredeck was in pretty bad shape with the support underneath completely rotten. The support was removed and a new one made of foam core was placed. It really stiffened things up so that cracks in the transition between the deck and liner could be properly repaired.
http://i57.photobucket.com/albums/g2...ines/csc81.jpg http://i57.photobucket.com/albums/g2...ines/csc80.jpg A very meticulously engineered jack system was used to level the deck while the new support was glassed in place! http://i57.photobucket.com/albums/g2...ines/csc83.jpg http://i57.photobucket.com/albums/g2...ines/csc82.jpg Most of the hatch covers are also being finished up. In each opening, wood has been laminated into place to receive the hinge screws. This is a picture of wood placement in the forward fishbox. The wood strips running lengthwise are simply wedging it into place until the resin dries. http://i57.photobucket.com/albums/g2...ines/csc88.jpg Hinges are trial-fit in the transom baitwell and cooler boxes. http://i57.photobucket.com/albums/g2...ines/csc86.jpg http://i57.photobucket.com/albums/g2...ines/csc87.jpg I'll get some more pictures up soon. |
Re: A New Boat to Check Out
Looking good Bonefish. That boat is gonna be super sweet when its all said and done.
|
Re: A New Boat to Check Out
does anyone know where to get the scupper plates bonefish is using for his through transom scuppers? I have been looking and haven't had any luck yet. thanks guys!
|
Re: A New Boat to Check Out
|
Re: A New Boat to Check Out
you tha man strick! Is this guy the only guy I can get them through? I only live 20 minutes away from him. Thanks again.
|
Re: A New Boat to Check Out
Most of the fairing (except for the floor) is now being finished up.
http://i57.photobucket.com/albums/g2...ines/csc89.jpg http://i57.photobucket.com/albums/g2...ines/csc91.jpg http://i57.photobucket.com/albums/g2...ines/csc90.jpg High build primer. http://i57.photobucket.com/albums/g2...ines/csc93.jpg http://i57.photobucket.com/albums/g2...ines/csc94.jpg http://i57.photobucket.com/albums/g2...ines/csc96.jpg Underside of the bow. Holes have been pre-drilled for the anchor roller and the rub rail. http://i57.photobucket.com/albums/g2...ines/csc92.jpg |
Re: A New Boat to Check Out
wow
|
Re: A New Boat to Check Out
A few more progress pictures before the weekend. Except for where the console will go, the floor is almost completely faired and ready for high build primer.
http://i57.photobucket.com/albums/g2...ines/csc98.jpg Cut outs for the cleats, rod holders, fuel fill, etc. were made at this stage in case there were any goof ups. The exposed foam core was given a coat of epoxy. http://i57.photobucket.com/albums/g2...ines/csc97.jpg The beginning of the console. http://i57.photobucket.com/albums/g2...s/DSC_0238.jpg http://i57.photobucket.com/albums/g2...ines/csc99.jpg |
Re: A New Boat to Check Out
BRINGIN THIS THREAD BACK TO THE FRONT SO I CAN FIND IT WHEN I GET HOME FROM WORK....... IN 2 MORE DAYS
|
Re: A New Boat to Check Out
Super job!!! I hope we have new pics soon!!!
|
Re: A New Boat to Check Out
Bonefish any new pics? I am getting a little boat porn withdrawal! :D
|
Re: A New Boat to Check Out
Here are a few progress pictures.

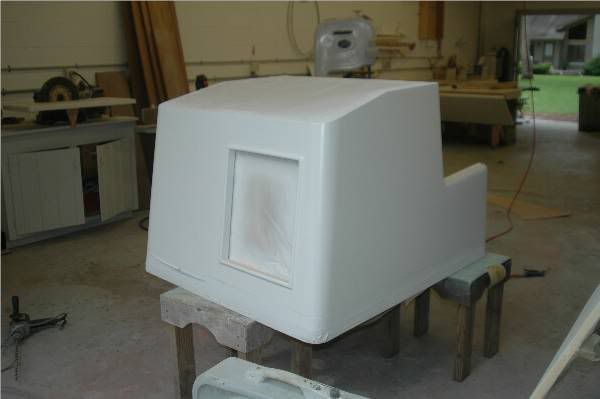

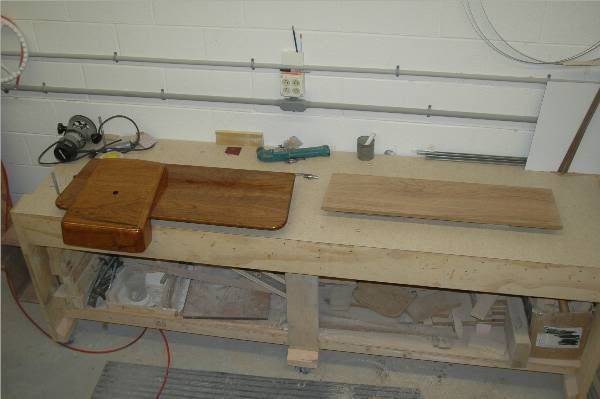

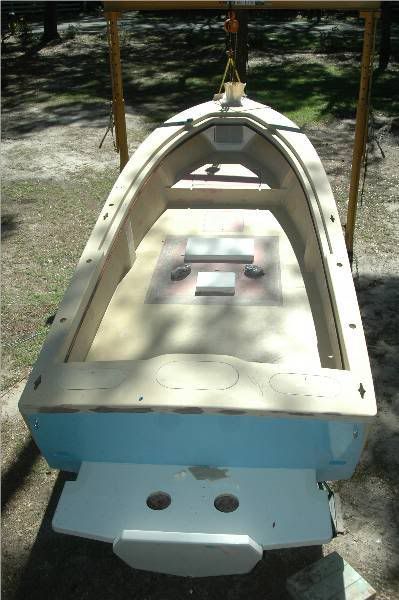

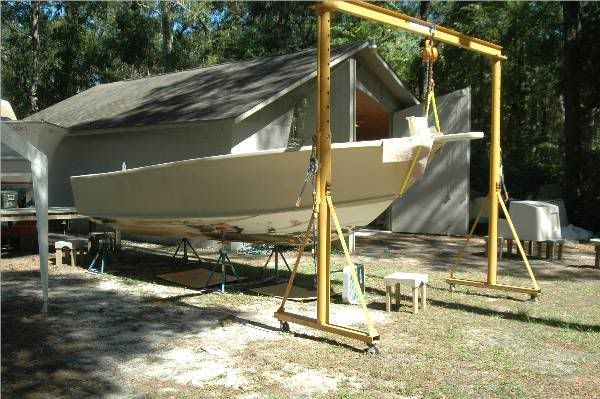

The teak top and steering pod has been fabricated for the console. http://i57.photobucket.com/albums/g2...nes/csc114.jpg A teak trim strip has been added to the lower edge on the inside of the cap. http://i57.photobucket.com/albums/g2...nes/csc109.jpg http://i57.photobucket.com/albums/g2...nes/csc111.jpg Console primed. http://i57.photobucket.com/albums/g2...nes/csc120.jpg Applying the first coat of epoxy to the top. http://i57.photobucket.com/albums/g2...nes/csc116.jpg The boat has been moved back outside to finish fairng the keel after some minor repair.http://i57.photobucket.com/albums/g2...nes/csc122.jpg The inside is ready for finish primer. http://i57.photobucket.com/albums/g2...nes/csc124.jpg |
Re: A New Boat to Check Out
:)This is going to be an "A+" boat when your done!! Keep the photos coming!
How many gallons did you figure the live well will be? Lloyd |
Re: A New Boat to Check Out
Looking Great! Please keep the pics coming you and Strick are doing some terrific work!
|
Re: A New Boat to Check Out
where in savannah is this work being done? id like to check the boat out one day
|
Re: A New Boat to Check Out
hi there look like you got sume work i have a 23 cc 1977 the center console is same is mine wath or you doing with your hatch onder console thahk you
|
Re: A New Boat to Check Out
A bit more progress. The console is taking a while, but it is ready for paint, except for where it will be glassed to the floor.

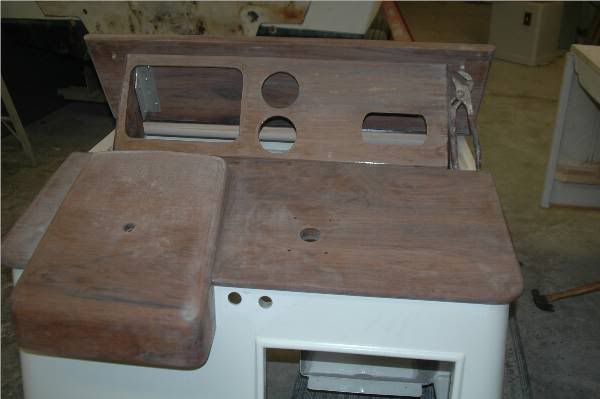

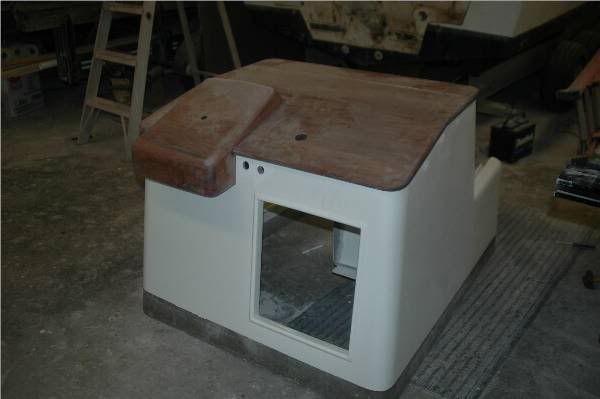

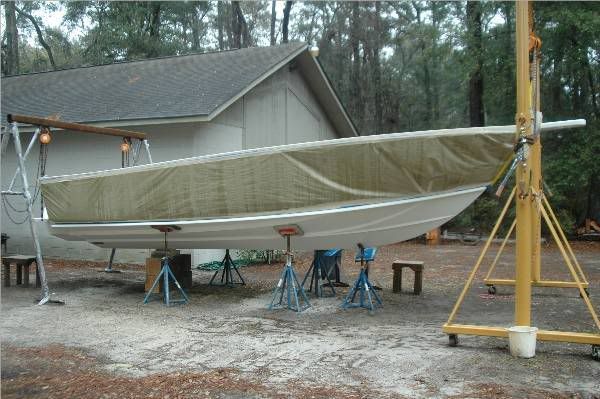

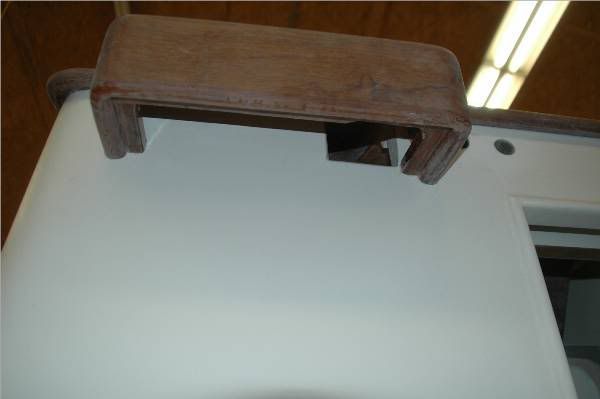

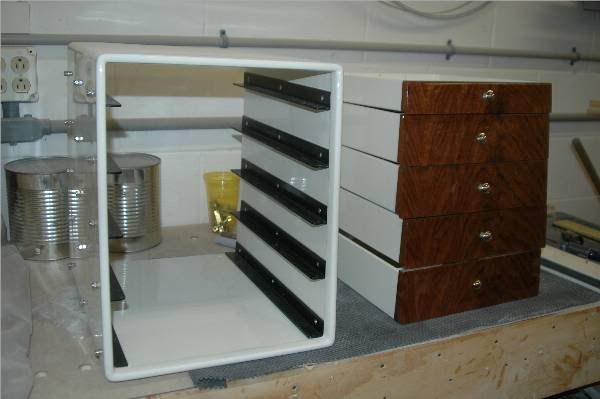

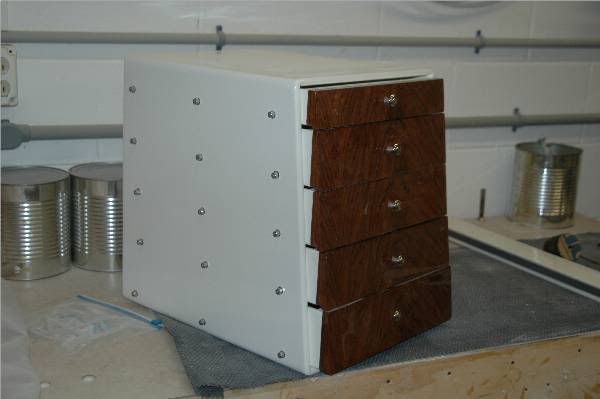

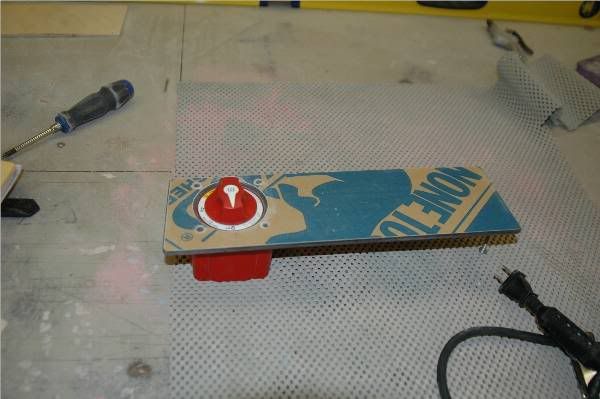

http://i57.photobucket.com/albums/g2...nes/csc125.jpg Holes are prepared for the motor controls as well as for electronics in the roll up dash. The channel locks will be replaced by an electric actuator to hold up the dash. http://i57.photobucket.com/albums/g2...nes/csc127.jpg http://i57.photobucket.com/albums/g2...nes/csc126.jpg The hole below the top is for my bank of storage drawers. They are mounted in a box that can be completely removed if necessary. http://i57.photobucket.com/albums/g2...nes/csc129.jpg http://i57.photobucket.com/albums/g2...nes/csc130.jpg Some of my switches will be in a plate mounted under the end of the steering pod. http://i57.photobucket.com/albums/g2...nes/csc131.jpg Battery switch is trial fit into the mounting plate. http://i57.photobucket.com/albums/g2...nes/csc132.jpg Finally, the hull is about ready to paint. The plan is to paint below the spray rail first, place it on the trailer, and move it to an inside location to paint the rest. http://i57.photobucket.com/albums/g2...nes/csc134.jpg Happy New Year! |
Re: A New Boat to Check Out
My friend, you and your shop are doing an outstanding (repeat "outstanding") job on this project. Absolutely no corners have been cut. You're using the best materials and taking the time to do it to perfection. Usually you only see this type of work in high end custom shops that cater to the one-off crowd that doesn't ask about the cost. Some really good ideas in this thread - it ought to be required reading for anyone contemplating a small CC rebuild.
I assume the console pod and teak cap trim will be "brightwork" finished. Awesome! |
Re: A New Boat to Check Out
This will be the 23' that all other redo's get measured against :eek:
|
Re: A New Boat to Check Out
something tells me that these guys have seen a gallon (or thousand) of epoxy before......cool to see what experienced craftsmen and some imagination can do. Mr. Ikan, good thing its not a 20' ("....get measured against"). More boat porn!
|
Re: A New Boat to Check Out
Killer! Beautiful work.... Roy Merritt would be proud!
|
